KFK33-S



  • By using advanced Digital Control Methods, complete sine waveform at the output under linear and non-linear load. (THD lower than %2)
  • DSP Microprocessor structure
  • Static structure, PWM controlled inverter with IGBT
  • Output Transformer with galvanic isolation
  • Monitoring and controlling over ModBus(RTU) (optional)
  • Monitoring and controlling over CANBUS(RTU) (optional)
  • Monitoring and controlling over TCP/IP network with the SNMP board (optional)
  • Communication through RS232/RS422/RS485 (optional)
  • 4-20mA, 0-10V Analog output for PLC (optional)
  • Real-time monitoring and control of Frequency Converters over the internet using an internet connected PC with static IP number (optional)100 warning lists and for each warning detailed warning report
  • Batteries can be connected (optional)

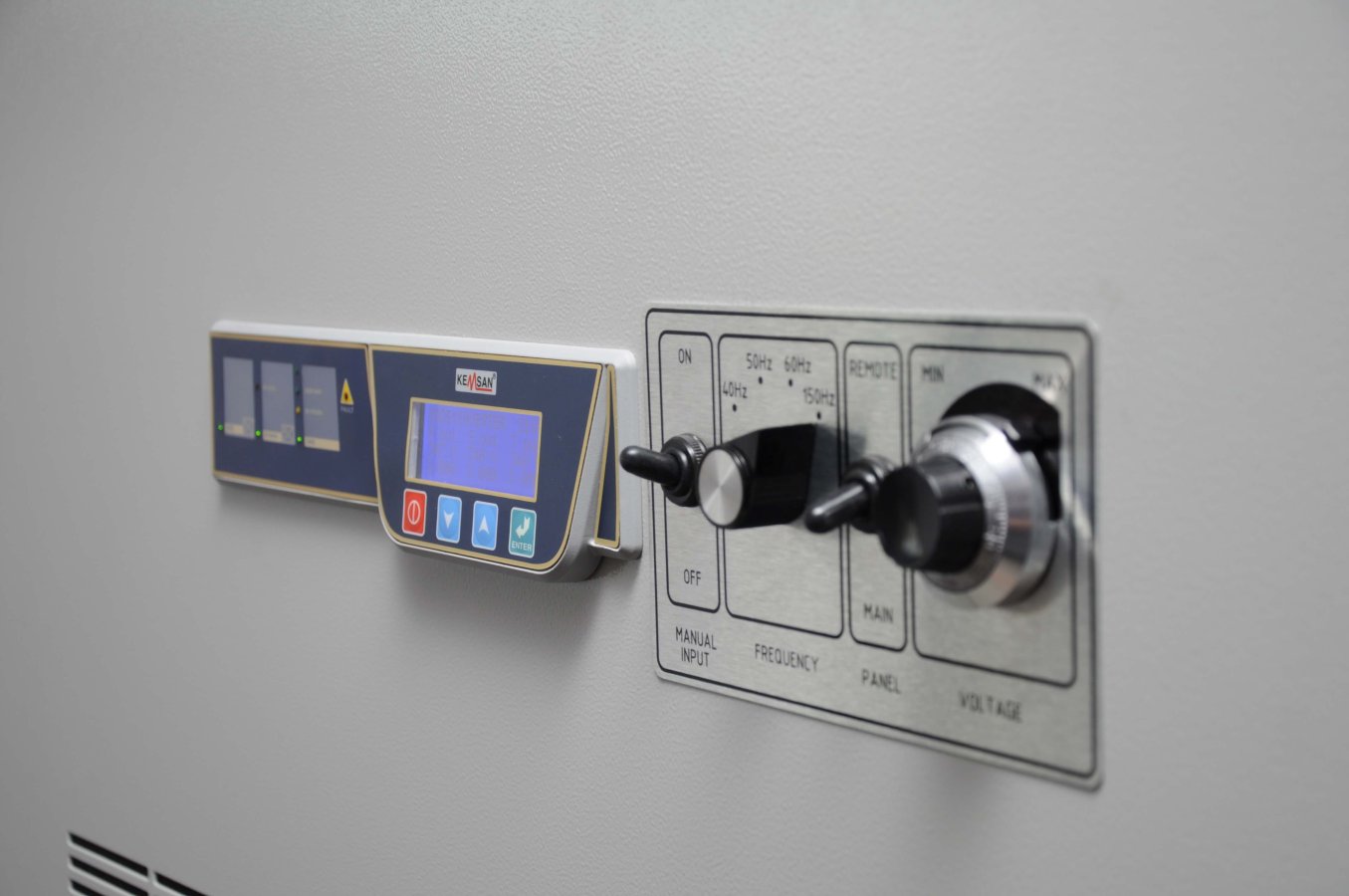

  • 128x64 LCD Control Board
