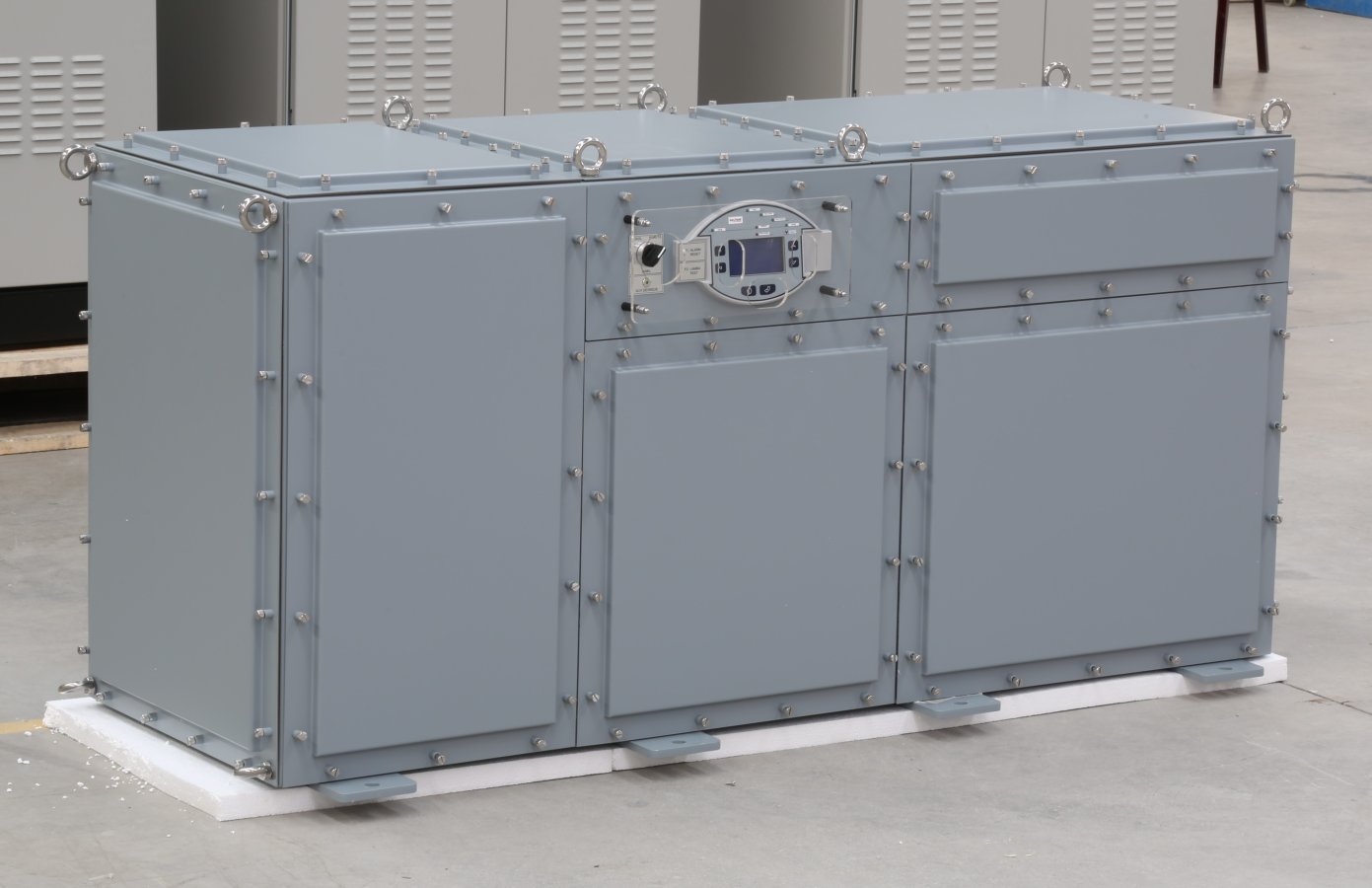

WATER COOLED 30KVA 60HZ SUBMARINE INVERTER
THIS PRODUCT PROVIDES 3X120VAC 60HZ ENERGY NEEDED IN MILITARY SUBMARINES.
| PROTECTION CLASS | IP44 |
| DIMENSIONS max(mm) | 1450 x 550 x 700mm |
| WEIGHT max.(kg) | 520Kg |
| STANDARTS | MIL-STD-461, MIL-STD-167-1, MIL-S-901D, MIL-STD-1310G, |
| COOLING | WITH WATER |
| OTHER | SUITABLE FOR SUBMARINE USE |
| OVER LOAD | AT 110%-1 HOUR, 130%-10min. , 150%-2min. OUTPUT VOLTAGE 5% ADJUSTABLE. |

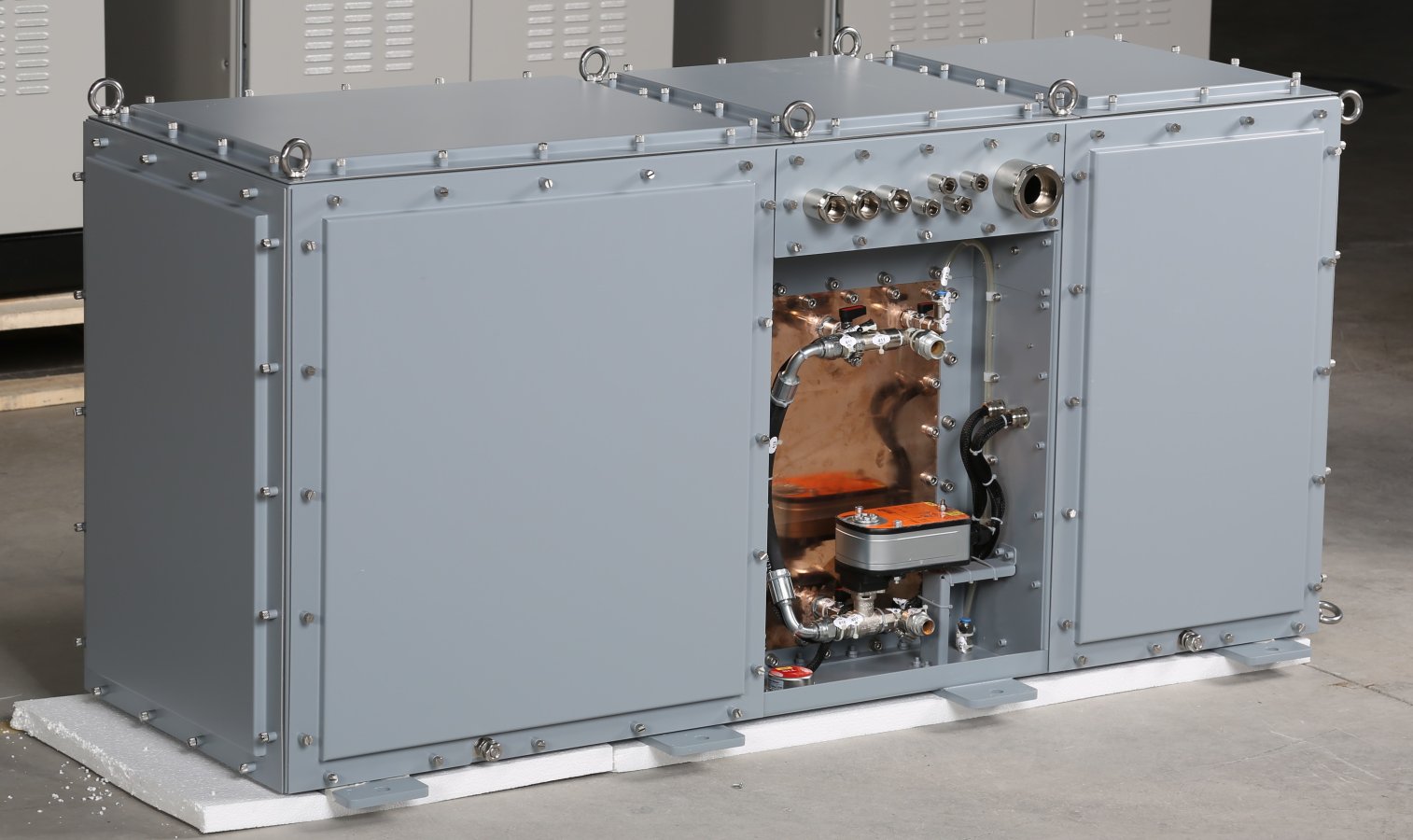

| HALOGEN FREE CABLES . DRAINAGE AND DISCHARGE MEASURES HAVE BEEN TAKEN FOR WATER COOLING SYSTEMS |
|
| Tearable window available to spray fire extinguisher |
| MARK | KEMSAN |
| MODEL | KPM03-S |
| OUTPUT POWER (KVA) | 30,0 |
| INPUT VOLTAGE (VDC) | 180 |
| INPUT POWER FACTOR | 1,00 |
| INPUT CURRENT | 148 |
| VERİM | 0,90 |
| OUTPUT VOLTAGE (VAC) (F-F) | 120 |
| OUTPUT PHASE | 3 PHASE |
| OUTPUT FREQUENCY (Hz) | 60 |
| OUTPUT POWER FACTOR | 0,80 |
| OUTPUT CURRENT | 144 |
| INPUT VOLTAGE TOLERENCE %+,- | 10 |
| INPUT FR. TOLERENCE %+,- | 0 |
| INPUT CONNECTION | "+,-" |
| OUTPUT CONNECTION | 3 PHASE |
| OVER LOAD % | 200 |
